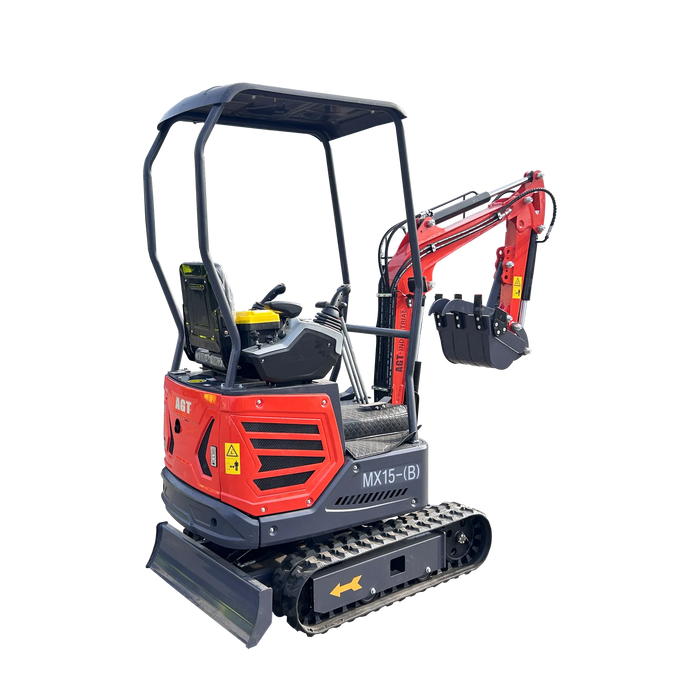

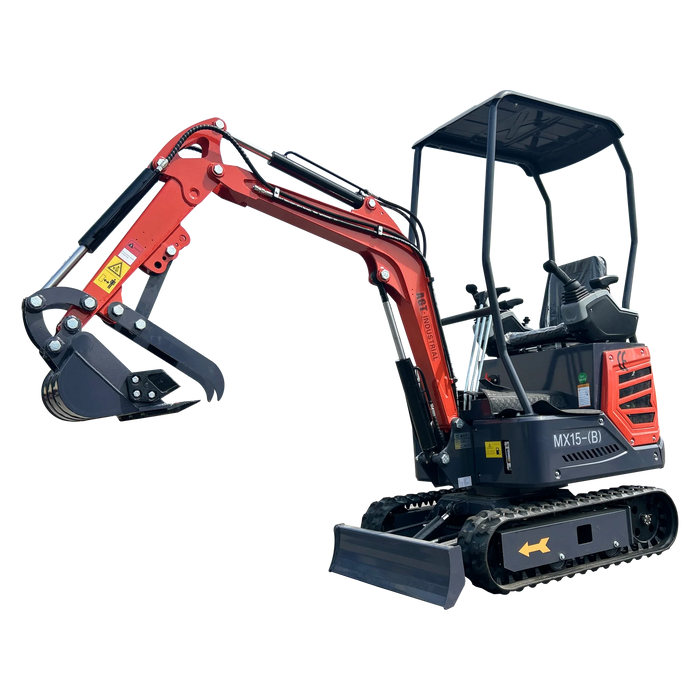

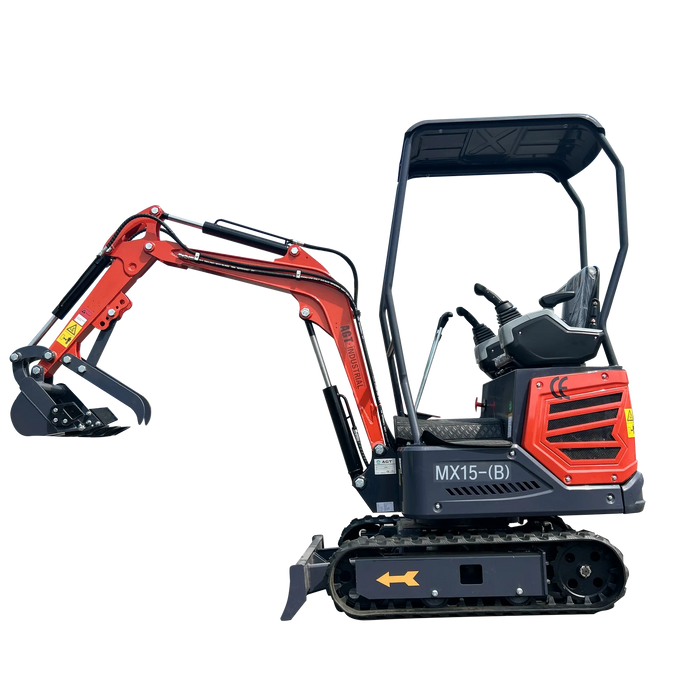

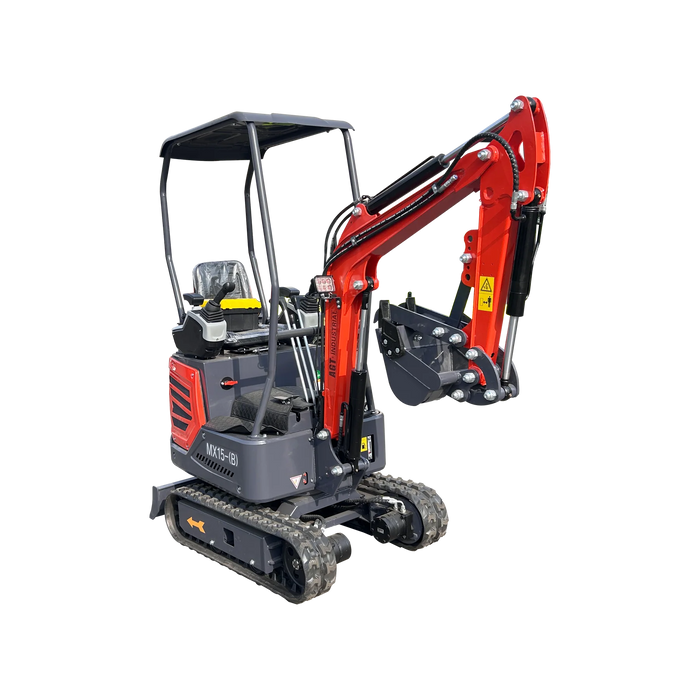

1 Ton, B&S Engine Mini Excavator w/ Pilot Control | MX15-B
1 Ton, B&S Engine Mini Excavator w/ Pilot Control | MX15-B
1 Ton, B&S Engine Mini Excavator w/ Pilot Control | MX15-B
1 Ton, B&S Engine Mini Excavator w/ Pilot Control | MX15-B
1 Ton, B&S Engine Mini Excavator w/ Pilot Control | MX15-B
1 Ton, B&S Engine Mini Excavator w/ Pilot Control | MX15-B
SKU MX15-B

1 Ton, B&S Engine Mini Excavator w/ Pilot Control | MX15-B

Sale Sale
$6,119.00
$6,119.00 - $6,119.00
$6,119.00
$5,809.30
$5,809.30 - $5,809.30
$5,809.30

We will need a direct phone number for the carrier to contact you with for final delivery

Action in Video

How to Drive

Dimension

  • Operating Weight: 0.9 Ton (1,800 lbs)
  • Overall Length: 3,200 mm (130 in)
  • Overall Width: 936 mm (43 in)
  • Overall Height: 2,210 mm (91 in)
  • Track Width: 180*72*37 (Width*Pitch Length*Links)

Working Range

  • Max Digging Depth: 1,769 mm (70 in)
  • Max Digging Height: 2,583 mm (102 in)
  • Max Dumping Height: 1,850 mm (73 in)
  • Max Reach at Ground: 3,040 mm (120in)
  • Dozer Blade Width: 900 mm (35 in)
  • Dozer Blade Height: 220 mm (8.7in)
  • Blade Max Lifting Height: 288 mm (11 in)
  • Blade Max Drop Depth: 146 mm (6 in)

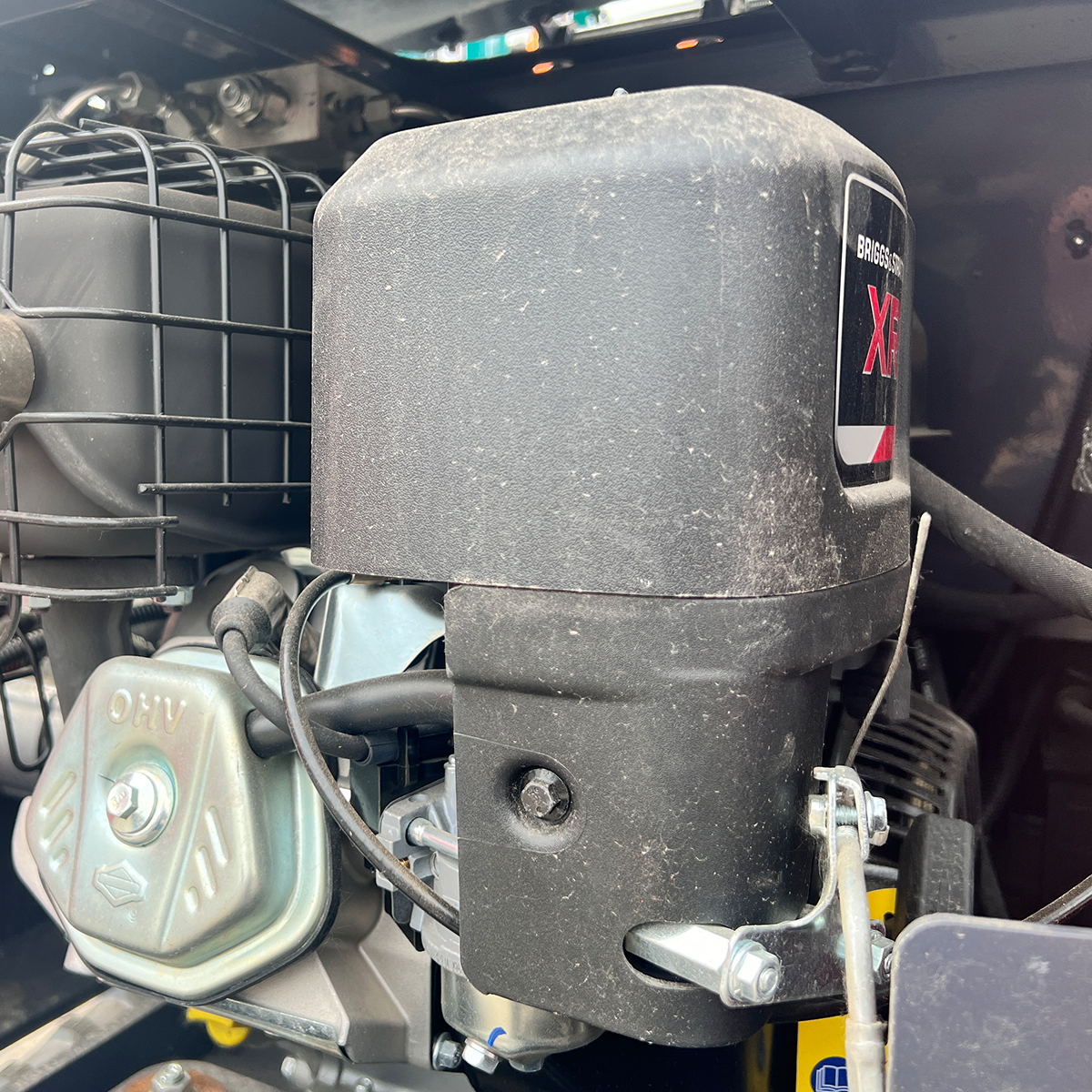

Engine

  • Engine Brand: B&S
  • Fuel Type: Gasoline
  • Model: XR
  • Rated Power: 10 kW (13.5 HP)
  • Displacement: 420 cc
  • Fuel Capacity: 6.6 L (1.7 gal)
  • Fuel Consumption: 0.5 - 1.2L
  • Hydraulic Flow Rate: 21.6 L/min (5.7 gal/min)
  • Hydraulic Pressure: 16MPa (2,320 PSI)
  • Hydraulic Tank Capacity: 23 L (6 gal)

Features

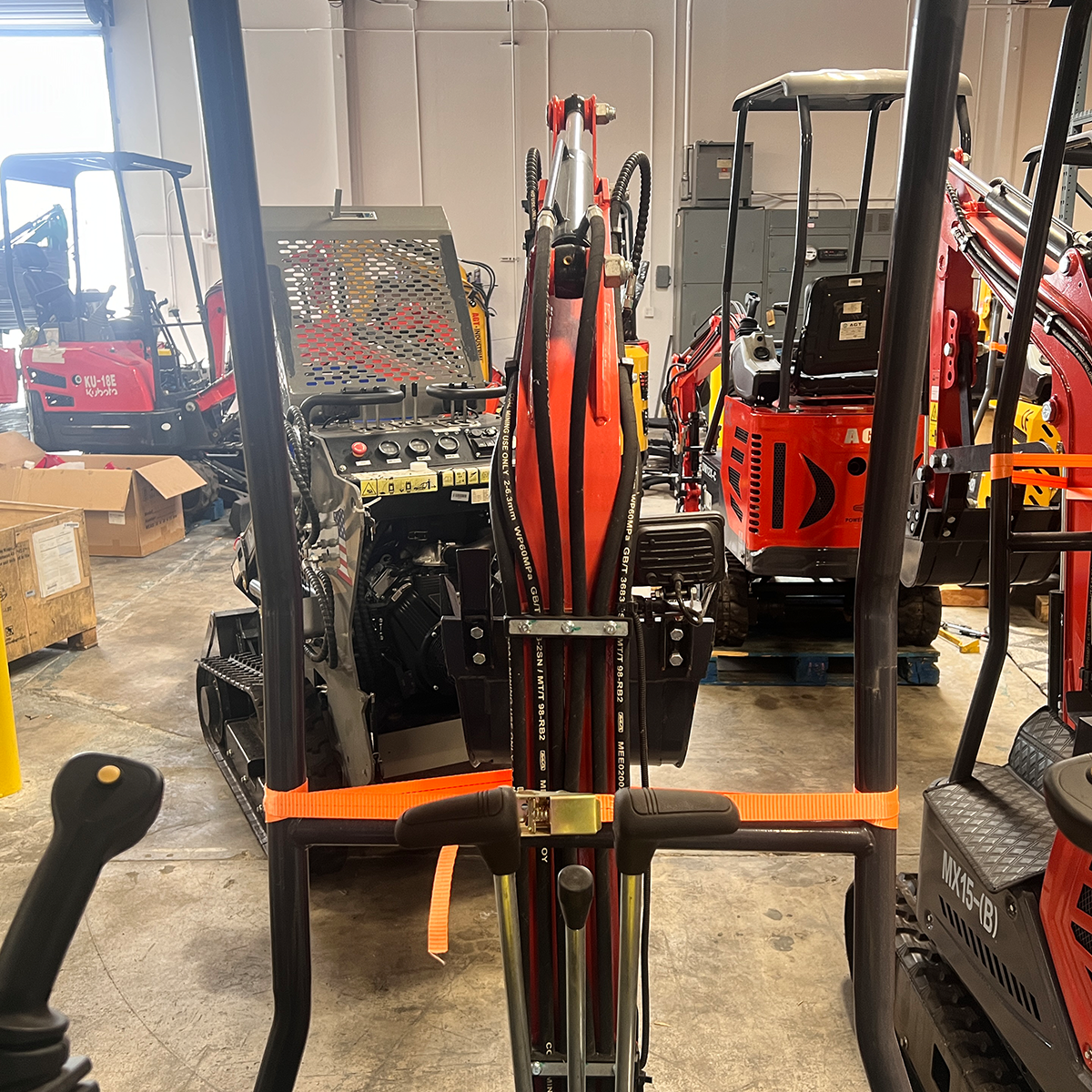

  • Pilot Control

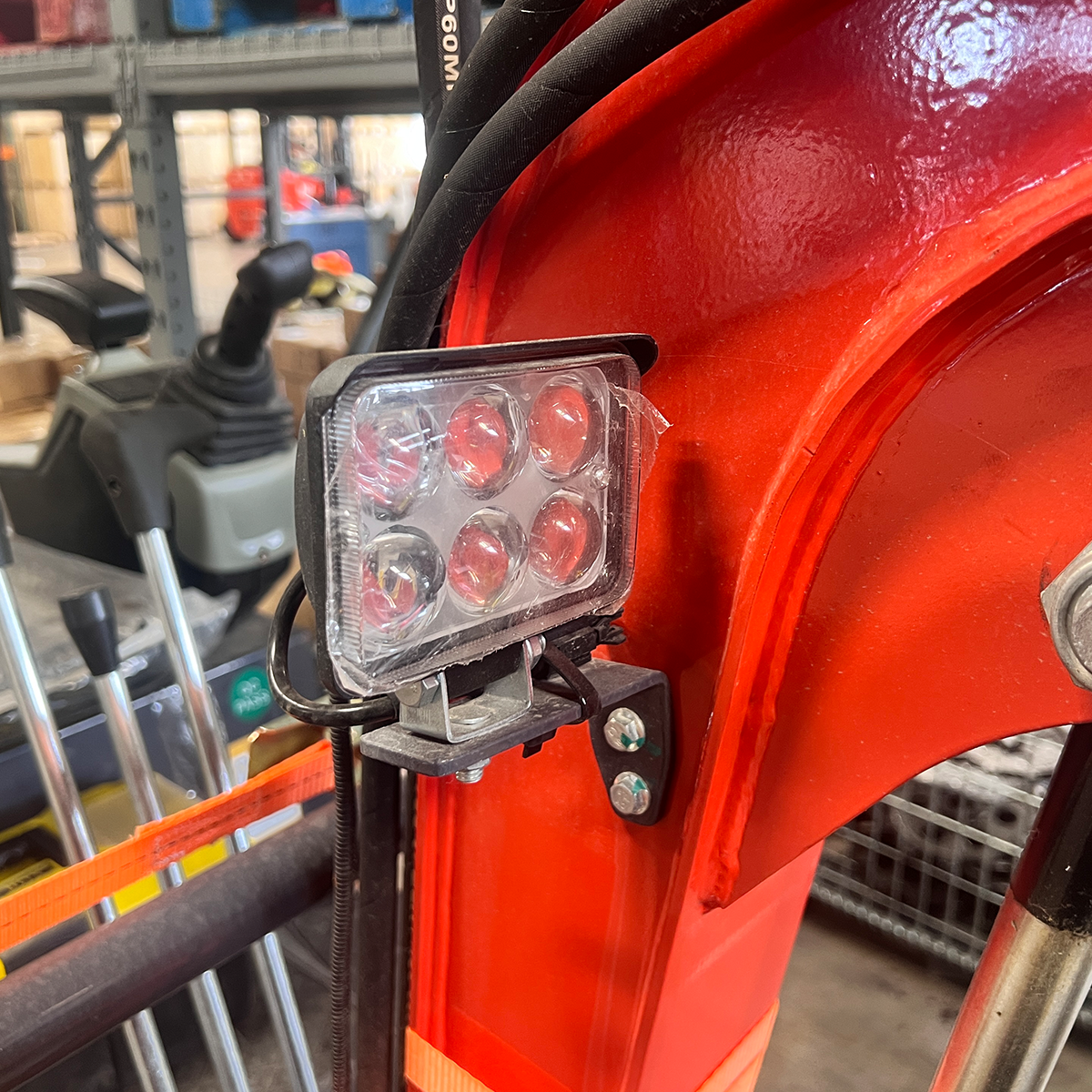

  • LED Light

FEATURES

Compatible attachments

8" Bucket with tooth for 1-Ton 2-Ton Mini Excavator |12EX-WD08.
8" Bucket with tooth for 1-Ton 2-Ton Mini Excavator |12EX-WD08.
Sale Sale
$308.00
$308.00 - $308.00
$308.00
$143.75
$143.75 - $143.75
$143.75

8" Bucket with tooth for 1-Ton 2-Ton Mini Excavator | 12EX-WD08

In stock

Dig narrow trenches for irrigation, utilities and landscaping with this 8-inch toothed bucket for compatible 1–2 ton mini excavators. Reinforced st...

View full details
$308.00
$308.00 - $308.00
$308.00
$143.75
$143.75 - $143.75
$143.75
Sale Sale
8" Toothless Bucket for 1-Ton 2-Ton Mini Excavator |AGT-12EX-WD08B.
8" Toothless Bucket for 1-Ton 2-Ton Mini Excavator |AGT-12EX-WD08B.
Sold out
$181.50
$181.50 - $181.50
$181.50
$126.50
$126.50 - $126.50
$126.50

8" Toothless Bucket for 1-Ton & 2-Ton Mini Excavator | AGT-12EX-WD08B

Out of stock

Dig narrow trenches and finish clean trench bottoms with this 8-inch toothless bucket for compatible 1–2 ton mini excavators. Its smooth cutting ed...

View full details
$181.50
$181.50 - $181.50
$181.50
$126.50
$126.50 - $126.50
$126.50
Sold out
AGT Mini Excavator Brush Cutter | 12EX-RC.
Sale Sale
$1,400.00
$1,400.00 - $1,400.00
$1,400.00
$1,200.00 - $1,610.00
$1,200.00 - $1,610.00
$1,200.00

Mini Excavator Mower Brush Cutter | 12EX-RC

In stock

Cut grass, brush and light vegetation with this hydraulic mower attachment for compatible 1–2 ton mini excavators. Its dual-blade cutting system an...

View full details
$1,400.00
$1,400.00 - $1,400.00
$1,400.00
$1,200.00 - $1,610.00
$1,200.00 - $1,610.00
$1,200.00
Sale Sale
20" Rake for 1 ton mini excavator | 12EX-PZ20.
20" Rake for 1 ton mini excavator | 12EX-PZ20.
Sale Sale
$308.00
$308.00 - $308.00
$308.00
$172.50
$172.50 - $172.50
$172.50

20" Rake for 1 ton mini excavator | AGT-12EX-PZ20

In stock

Clear roots, branches, rocks and loose debris with this 20-inch rake for compatible 1-ton mini excavators. Multiple heavy-duty tines help rake and ...

View full details
$308.00
$308.00 - $308.00
$308.00
$172.50
$172.50 - $172.50
$172.50
Sale Sale
Quick Attach|Compatible with all 12 series AGT Made Mini Excavators.
$446.20 - $446.20
$446.20
$446.20
$446.20 - $446.20
$446.20

Quick Attach | AGT-12EX-HK

In stock

Simplify attachment changes on your compatible mini excavator with this compact quick attach coupler. Its high-strength steel construction su...

View full details
$446.20 - $446.20
$446.20
$446.20
$446.20 - $446.20
$446.20
Mini Excavator Attachments: 1 Ton

Parts List

Track for QH12, H12, DM12-C and H15 Size: 180X72X37.
$229.00 - $350.00
$299.99
$229.00 - $350.00
$229.00 - $350.00
$229.00

Track for QH12, MX12R, LRT23, H12, DM12-C and H15 Size | H12-QH12LD

In stock

Replace a worn or damaged track on your compatible AGT mini excavator or LRT23 mini skid steer. Light-duty and heavy-duty options are available to ...

View full details
$229.00 - $350.00
$299.99
$229.00 - $350.00
$229.00 - $350.00
$229.00
$19.99 - $19.99
$19.99
$22.99
$22.99 - $22.99
$22.99

Bucket Teeth Kit | JGCL-NT15

In stock

Replace worn or damaged bucket teeth on your compatible excavator bucket to restore digging penetration. This bolt-on replacement uses two mounting...

View full details
$19.99 - $19.99
$19.99
$22.99
$22.99 - $22.99
$22.99
$29.00 - $29.00
$29.00
$29.00
$29.00 - $29.00
$29.00

Battery Disconnect | DYKG-H12

In stock

Isolate battery power on your compatible equipment with this replacement battery disconnect switch. It opens the battery circuit when switched off,...

View full details
$29.00 - $29.00
$29.00
$29.00
$29.00 - $29.00
$29.00
$230.00 - $230.00
$230.00
$230.00 - $230.00
$230.00

Arm Cylinder for Mini Excavator | XBYG

In stock

Replace a worn, leaking or damaged arm cylinder on your compatible mini excavator. This hydraulic cylinder moves the stick inward and outward for d...

View full details
$230.00 - $230.00
$230.00
$230.00 - $230.00
$230.00
$194.35 - $194.35
$194.35
$194.35 - $194.35
$194.35

Bucket Cylinder For Mini Excavator | WDYG

In stock

Replace a worn, leaking or damaged bucket cylinder on your compatible mini excavator. This hydraulic cylinder operates the bucket linkage to curl a...

View full details
$194.35 - $194.35
$194.35
$194.35 - $194.35
$194.35
Parts List: MX15-B
