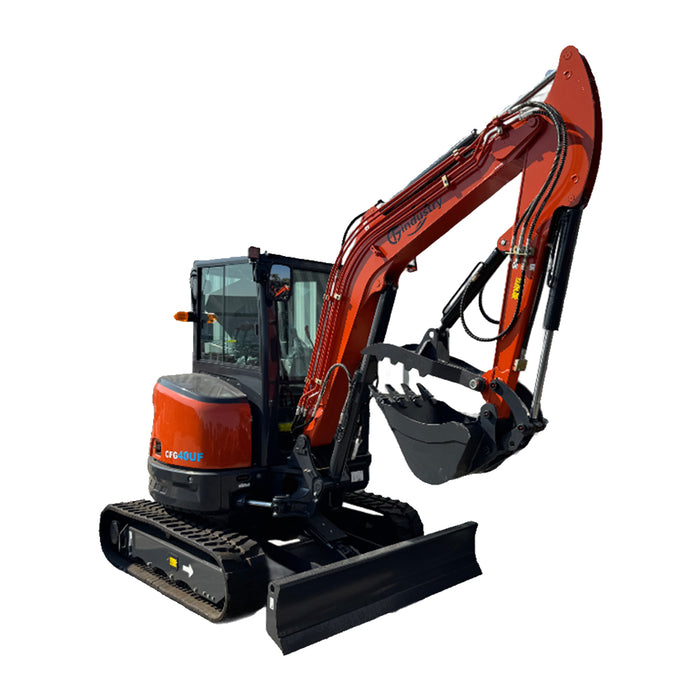

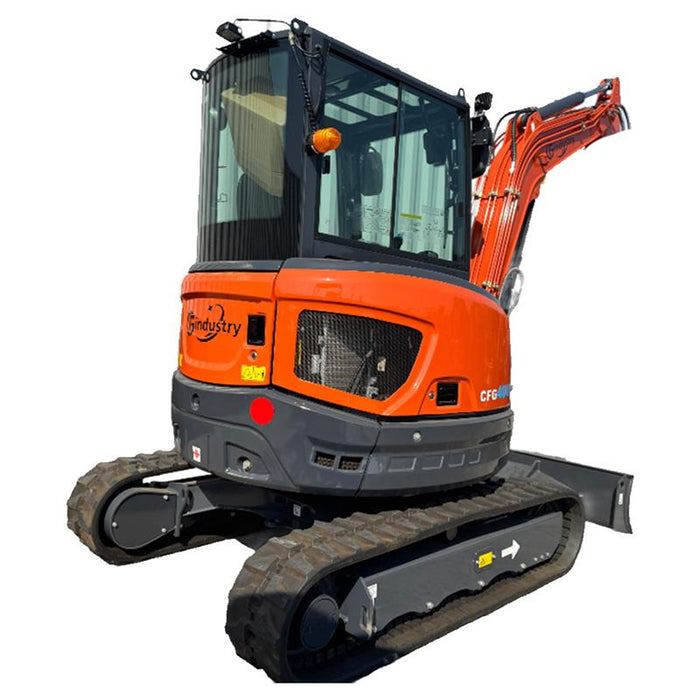

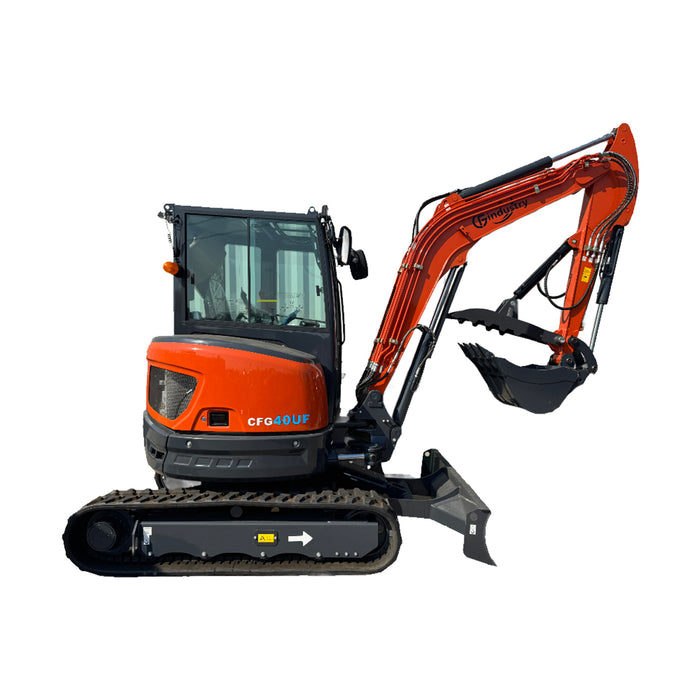

4 Ton, Kubota Diesel Engine Mini Excavator w/ Hydraulic Thumb & A/C | CFG-40UF

Name: 4 Ton, Kubota Diesel Engine Mini Excavator w/ Hydraulic Thumb & A/C | CFG-40UF
Brand: AGT Equipment
SKU: CFG-40UF
Price: 28700.0 USD
Availability: InStock
Rating: 5.00 (5 reviews)

Sale

$30,809.00

$30,809.00 - $30,809.00

$30,809.00

$28,700.00

$28,700.00 - $28,700.00

$28,700.00

Quantity

In-Action Video

How to drive

Manual

Uses 35 mm pin attachments. Replaced Radio with Hydraulic Thumb.

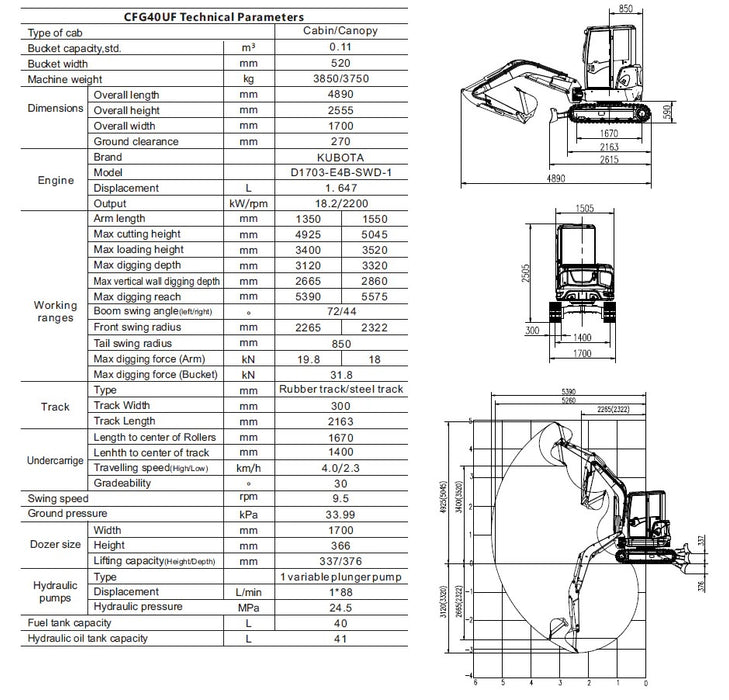

Dimension

Operating Weight: 3.8 Ton (8377 lb)
Overall Length: 4890 mm (192.5 in)
Overall Width: 1700 mm (67 in)
Overall Height: 2555 mm (100.5 in)

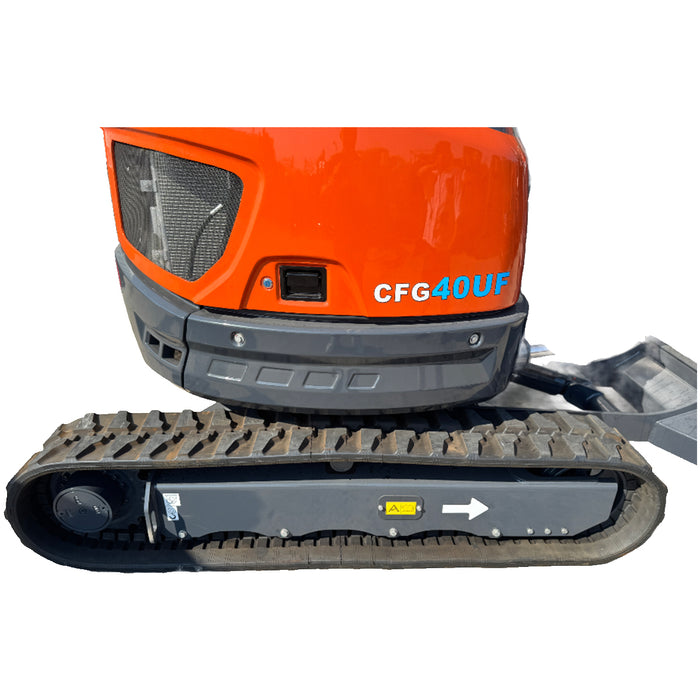

Track Size: 300*55*84 (W*P*L)

Working Range

Max Digging Depth: 3320 mm (131 in)
Max Digging Height: 5045 mm (198 in)
Max Dumping Height: 3520 mm (138 in)
Max Reach at Ground: 5575 mm (219 in)
Dozer Blade Width: 1700 mm (67 in)
Dozer Blade Height: 366 mm (14 in)
Blade Max Lifting Height: 336 mm (13 in)
Blade Max Drop Depth: 336 mm (13 in)

Engine

Engine Brand: Kubota
Fuel Type: Diesel
Model: D1703-E4B
Rated Power: 18.2 kW (24.4 HP)
Displacement: 1647 cc
Fuel Capacity: 40L (10.6 gal)
Hydraulic Flow Rate: 67.2 L/min (17.75 gal/min)
Hydraulic Pressure: 24.5 MPa (3553 psi)
Hydraulic Tank Capacity: 41 L (10.8 gal)
Battery: 12V

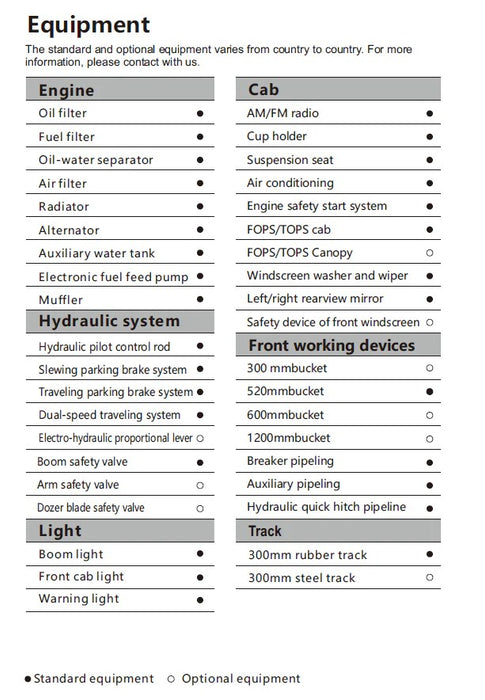

Features

Enclosed Cab
LED Lights
AM/FM Radio
AC
Rearview Mirror
Pilot Control
Side Swing Boom

FEATURES

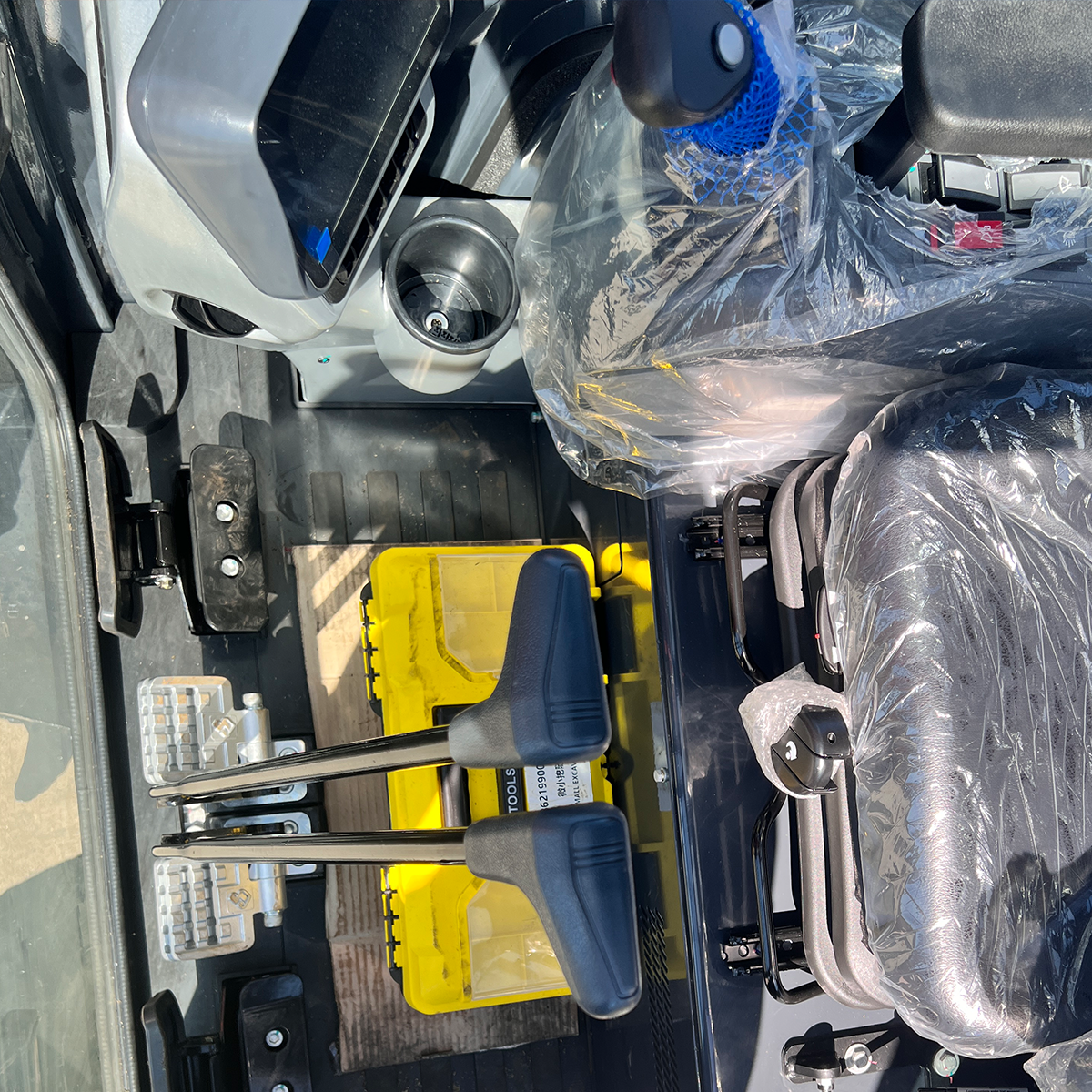

Air Conditioning

Equipped with air conditioning for enclosed cabins, this mini excavator keeps operators cool and comfortable during long hours on the job. 1

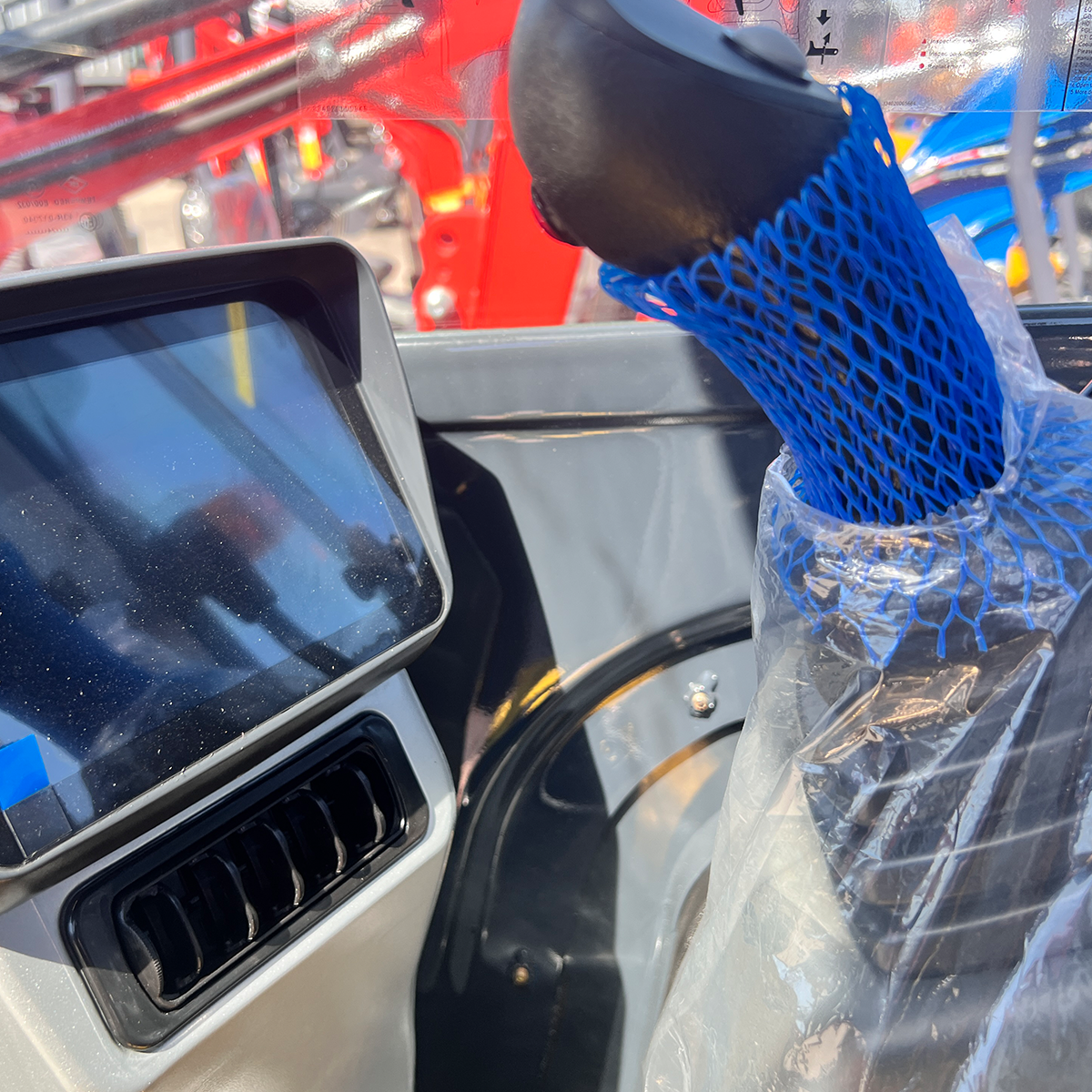

Pilot Control

Smooth, precise joystick operation for easier handling and less operator fatigue.

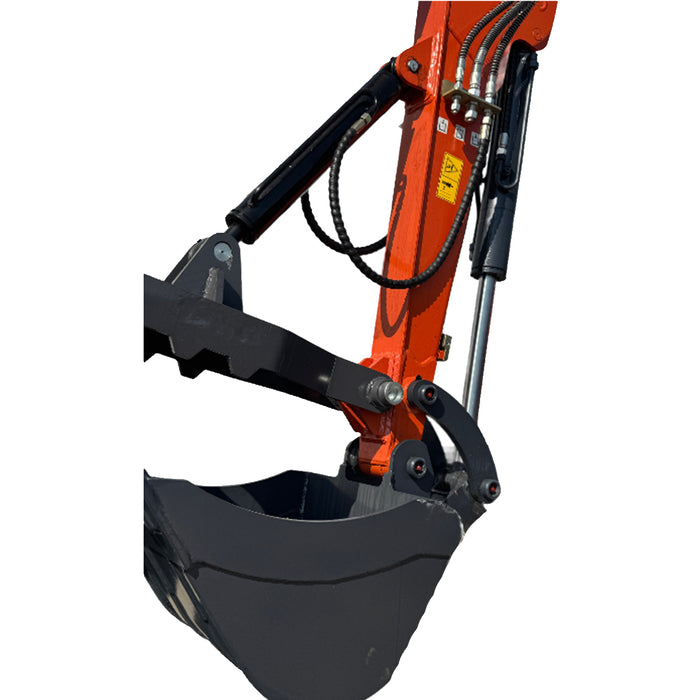

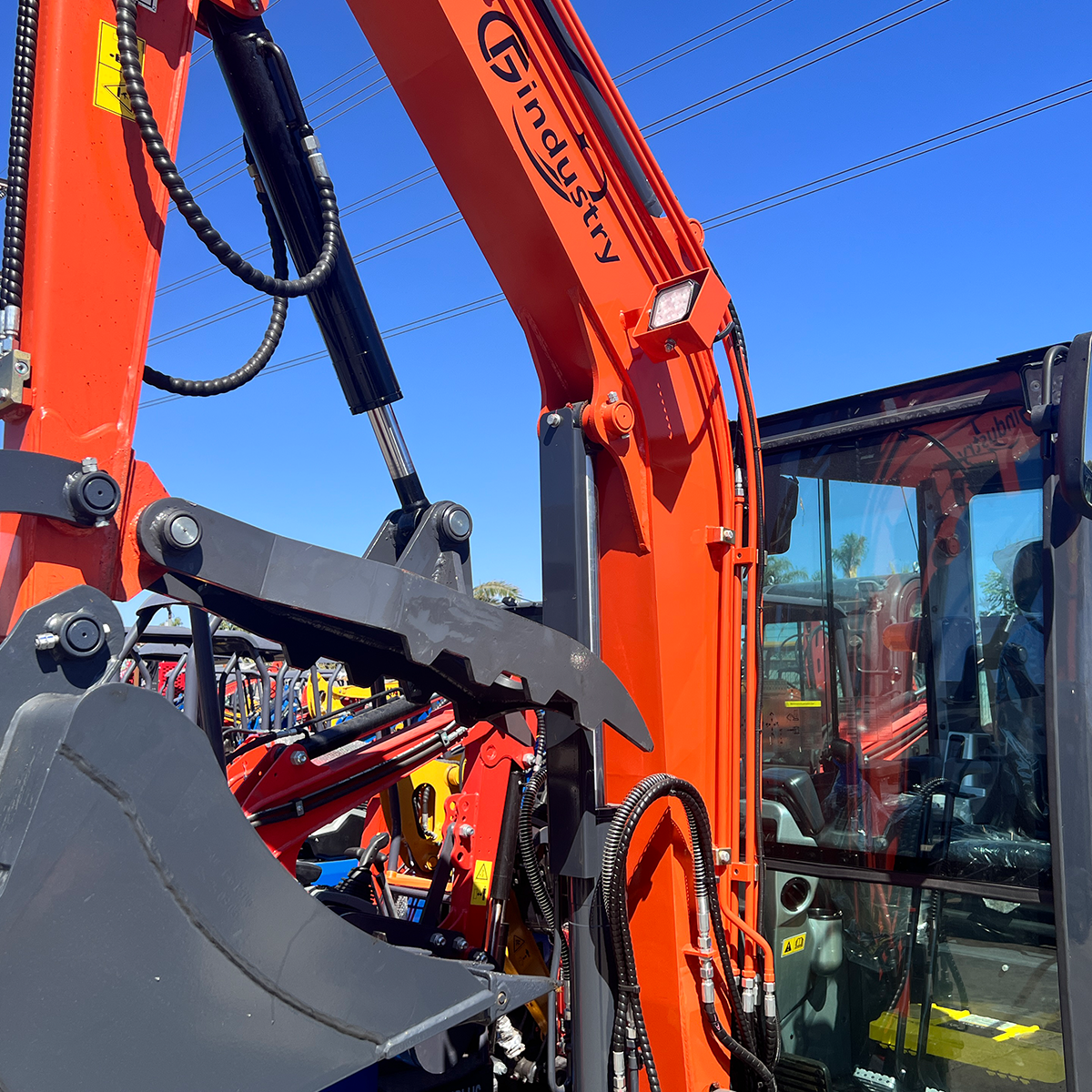

Hydraulic Thumb

Grabs, lifts, and secures materials with ease, making every job more efficient.

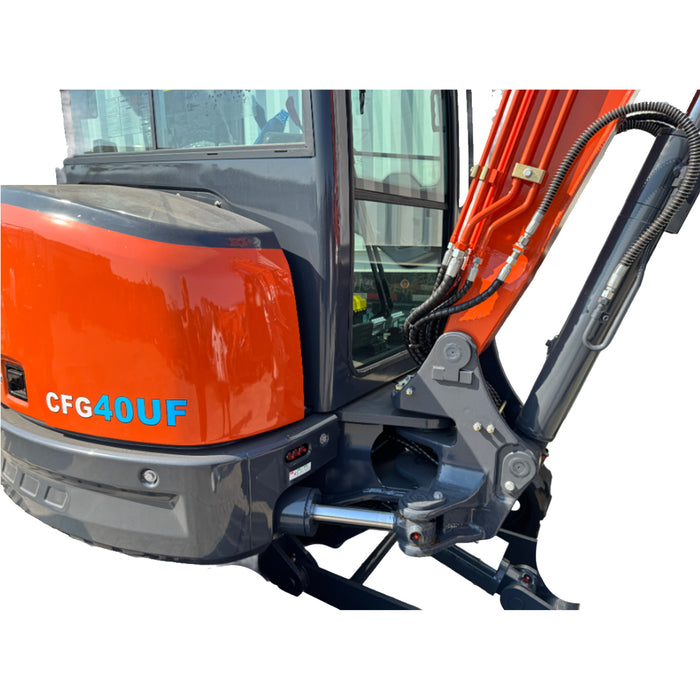

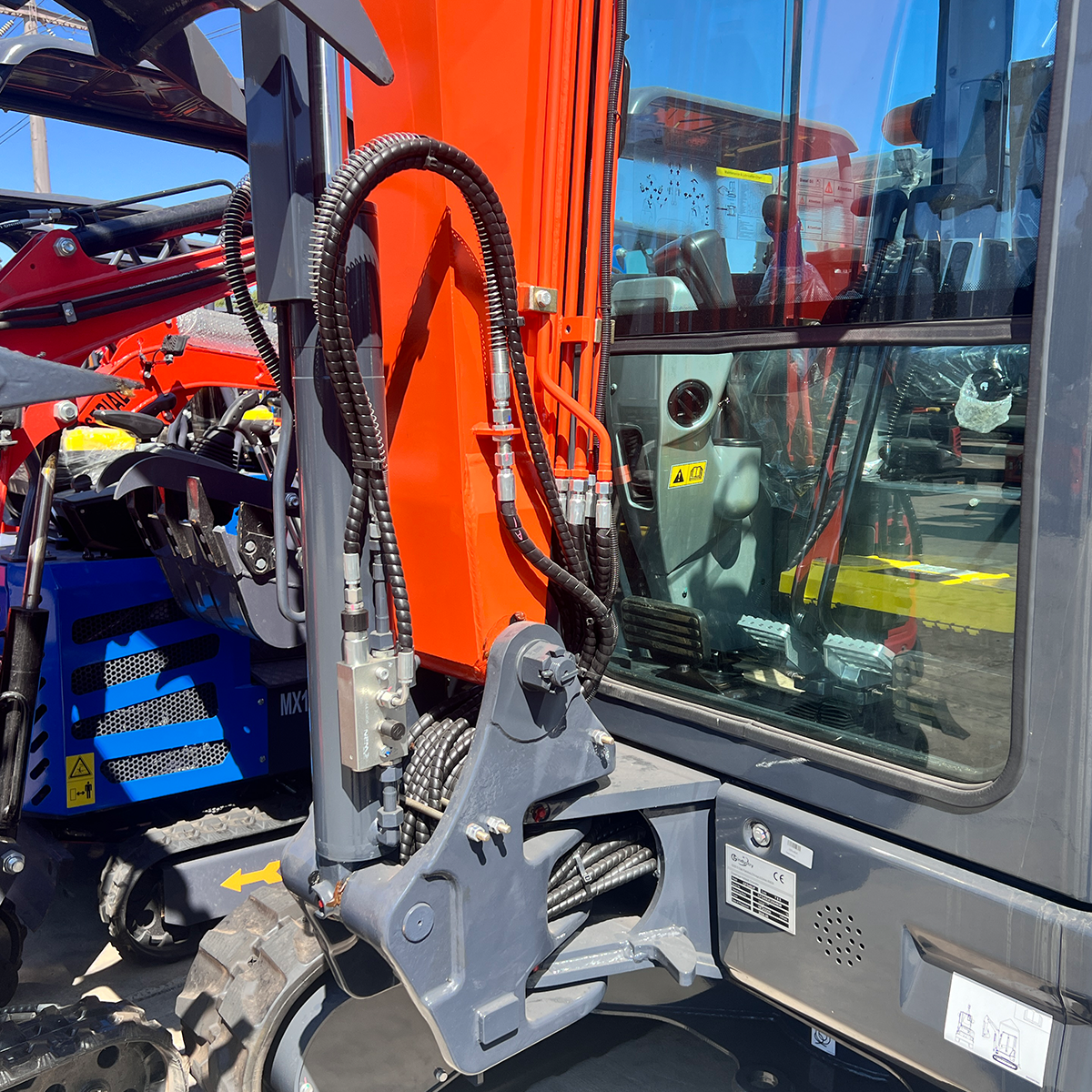

Side Swing Boom

Works tight against walls and obstacles for maximum versatility on the jobsite.

Very nice machine

Very impressed with the fit and finish, the attention to detail, the inclusion of fire extinguisher and tool kit. The machine has plenty of power and for a mini seems big enough to do the work we need

More power than I expected

I bought this mini to do work around my acreage. Lots of trees and stuff grow up. This thing is extremely proficient in handling stuff i never dreamed of doing with it. My 17 year old grandson operates in flawlessly. Only problem is that i can't get the bucket clamp to open but will close. Not sure what i am missing. This machine with kubota engine works flawless and only sips diesel. Ac is great in summer and heat in winter. Work in comfort! I would not hesitate to buy another one. I expect with maintenance it will last me many years. Grease and grease, oil change and filters.

great machine excellent smooth operation.love it perfect size for what i need

cfg40uf is more than i expected it is the perfect size for what i need if you are looking for a machine around 4 ton this is the one quality smooth controls kubota with these features is more than $60000

The CFG 40UF excavator is much more than I expected!

The CFG 40UF excavator is larger than I expected and appears to be very ruggedly built. It may take me some time to learn Cat. controls as I am JD skilled. The fit and finish is excellent and the cabin is very roomy for a mini excavator and I'm 6'3" 195 lbs. The hydraulic thumb doesn't fold up toward the boom like other units and is much like the smaller 2 ton mini's. The listing states that it comes with an am/fm radio which was not installed so a warranty claim was filed needed and I'm awaiting the outcome. Overall I am very please with the 40UF so far and look forward to getting my projects completed.

Communication contacting the company can be difficult

Communication contacting the company can be difficult, other then that great product and friendly staff when you can contact them.
