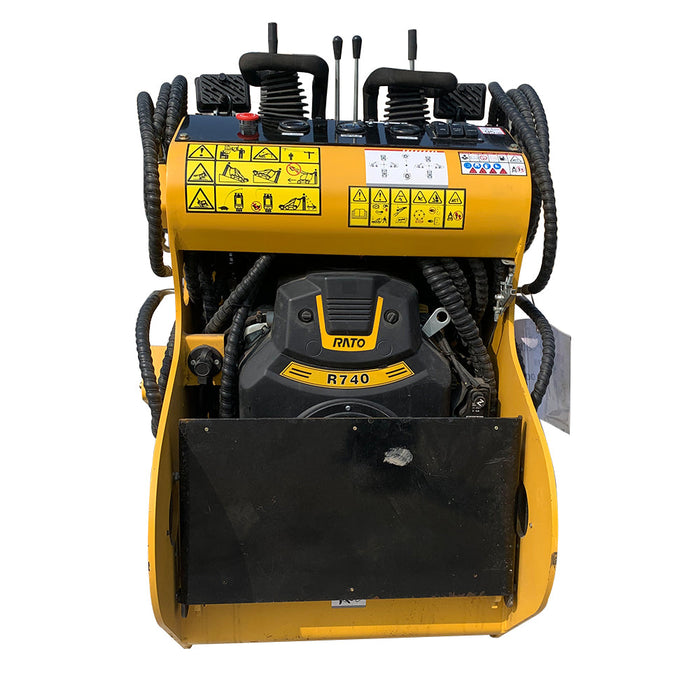

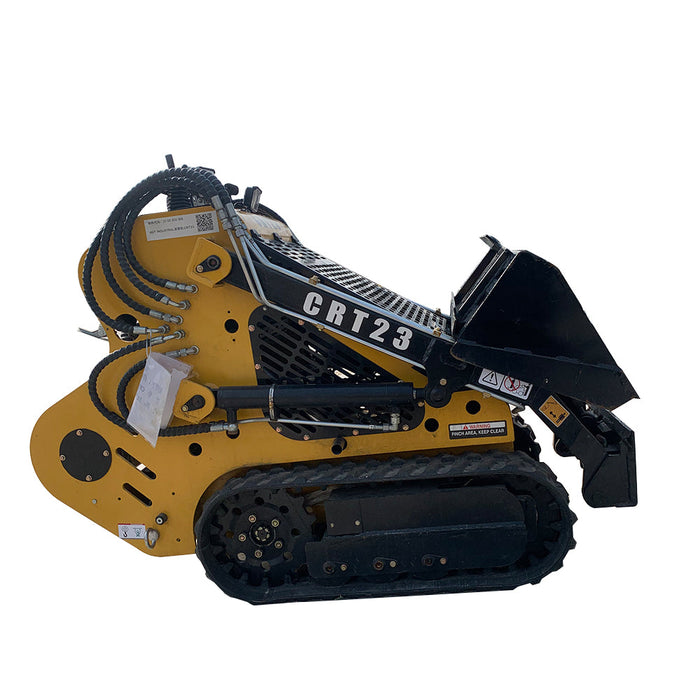

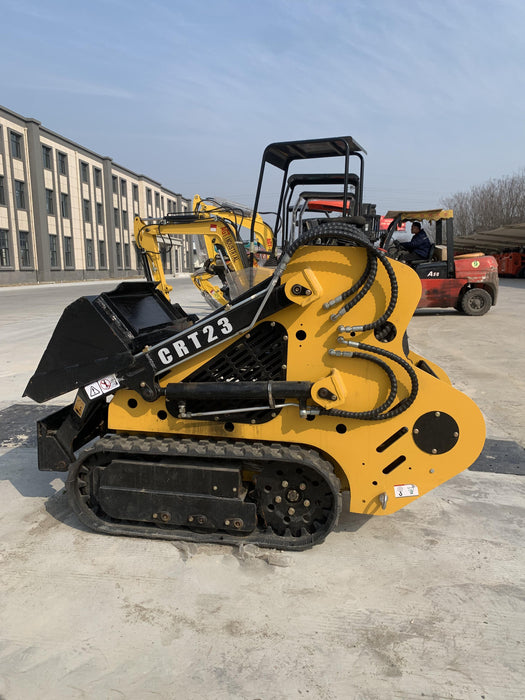

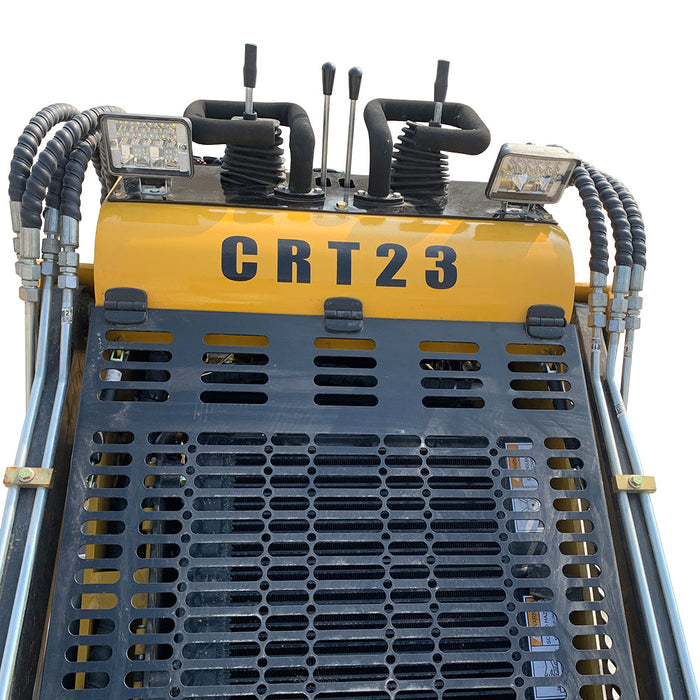

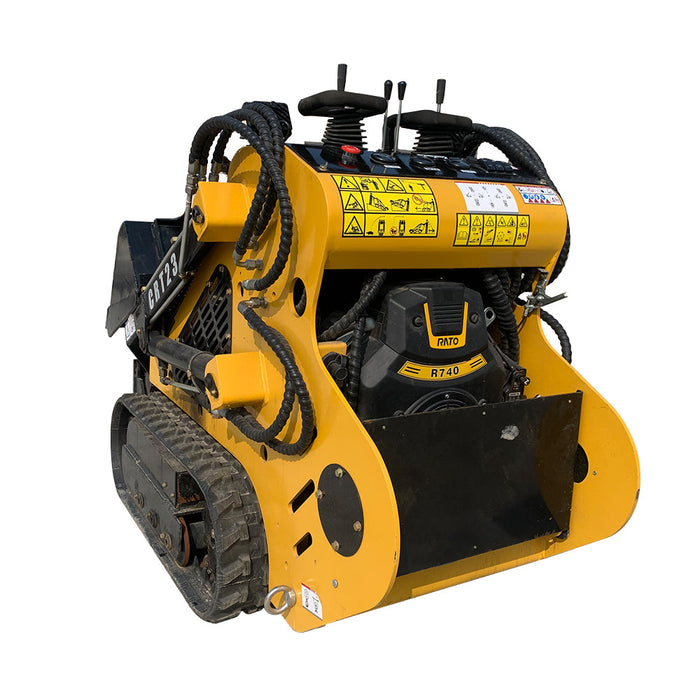

1 Ton, Mini Stand-on Skid Loader | CFG-CRT23
SKU AGT-CRT23

1 Ton, Mini Stand-on Skid Loader | CFG-CRT23

Oferta Oferta
$7,699.00
$7,699.00 - $7,699.00
$7,699.00
$6,592.88
$6,592.88 - $6,592.88
$6,592.88

The RATO 23HP Mini Stand-On Skid Loader offers 950KG operating weight and a durable crawler design, making the CFG-CRT23 a compact yet powerful solution for heavy-duty tasks.

Technical Data:

  • Operation Weight: 1 Ton
  • Engine: Rato
  • Horse Power: 23
  • Max Angle: 30 Degree

Specific Data:


Engine
Rato


Overall weight
982㎏

Maximum Angle of climb
30°


Load Capacity
200㎏


Main valve
SHMMECH


Track dimension
180*72*37cm


Type of track tensioning
tension cylinder


Max. unloading height
2650mm


Max. unloading height
1860mm


 Max. digging radius
2570mm


Max. Digging depth
1750mm


Max. vertical digging depth
1500mm


Min. swing radius
1290mm

Tail turning radius
760mm


Max. lifting height of dozer blade
325


Max. Digging depth of dozer blade
175








Basic
Performance
Parameters		 Working Weight(kg) 950
Bucket capacity(m³) 0.1
Travel speed low/high speed(Km/h) 4
Climbing ability(%) 30
Maximum lifting force (Kg) 200
C Maximum working height(mm) 2323
B Maximum pin height (mm) 2007
A Maximum unloading height(mm) 1612
G Loading distance at maximum unloading height (mm) 611
H Wheelbase(mm) 965
F Ground clearance(mm) 203
L Bucket discharge angle 23°
Body E Bucket width(mm) 1120
J/K  Overall Length(mm) 2181/2435
N  Overall Width(mm) 1120
O Body width(mm) 826
D Overall Height(mm) 1383
M Slewing radius(mm) 1500
Engine Engine Brand Rato
Engine Model 740
Max. Horsepower(pc) 27
Maximum power(Kw) 16.8
Max. speed(rpm) 3600
Displacement (cc) 739
Cylinders 2
Cooling method fan cooling
Engine oil change quantity(L) 1.6
Fuel Type Gasoline
Fuel Grade 92#
Theoretical fuel consumption(L/h) ×
Hydraulic
system		 Main pump type/model gear pumps
Main pump brand (Tianjin Xingzou)
Rated set pressure(Mpa) 22
Maximum flow rate of main pump(L/min) 75.6
Multi-way valve 2+2+2
Brand of Multi-way valve (Li Xin)
Rated Set Pressure(Mpa) 16
Hydraulic Linear Motor type Cycloid hydraulic motor
Linear Motor Brand (Dan  Fusi)
Motor Displacement 350
Tracks △-Rubber (bandwidth*pitch*number of sections) 180*72*41
Wheels △
Configuration Cab ×
Roof ×
Handrail √
Tensioning Forms Hydraulic Tensioning
Air Conditioning ×
Fuel tank Fuel tank(L) 31
Hydraulic oil tan(L) 33
