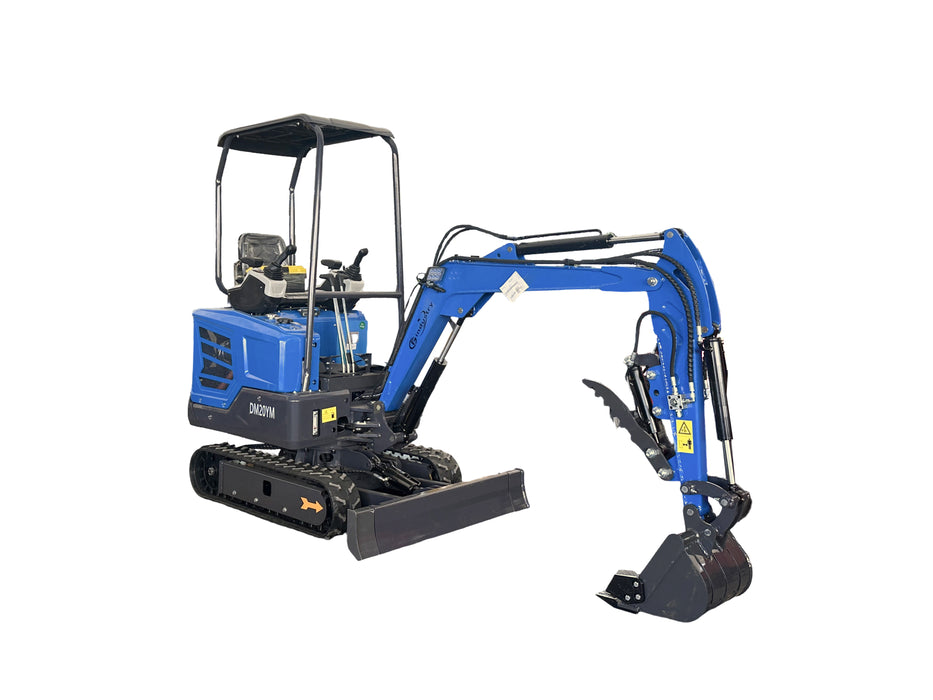

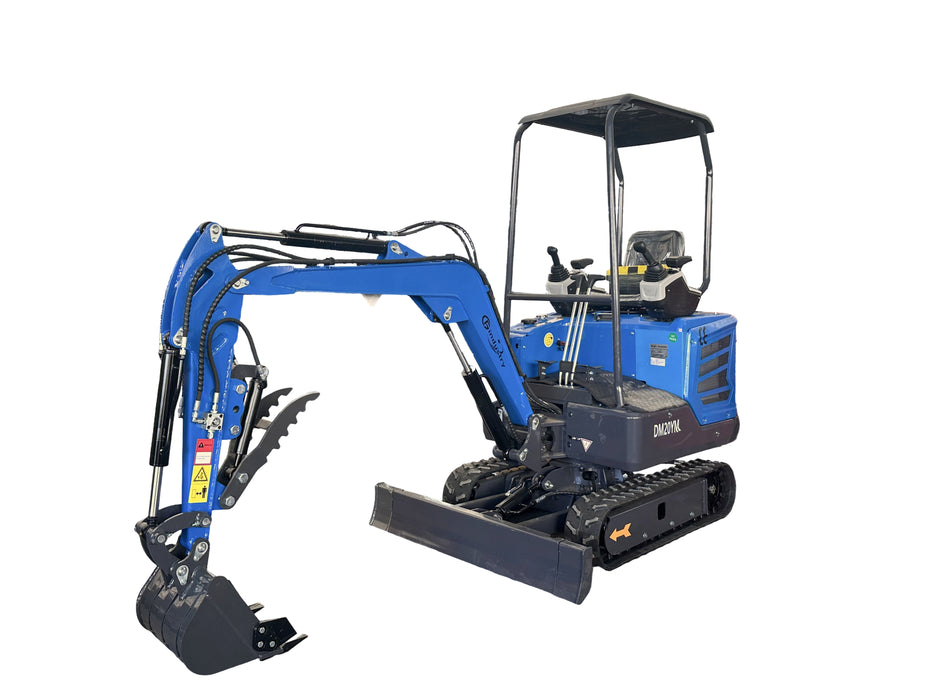

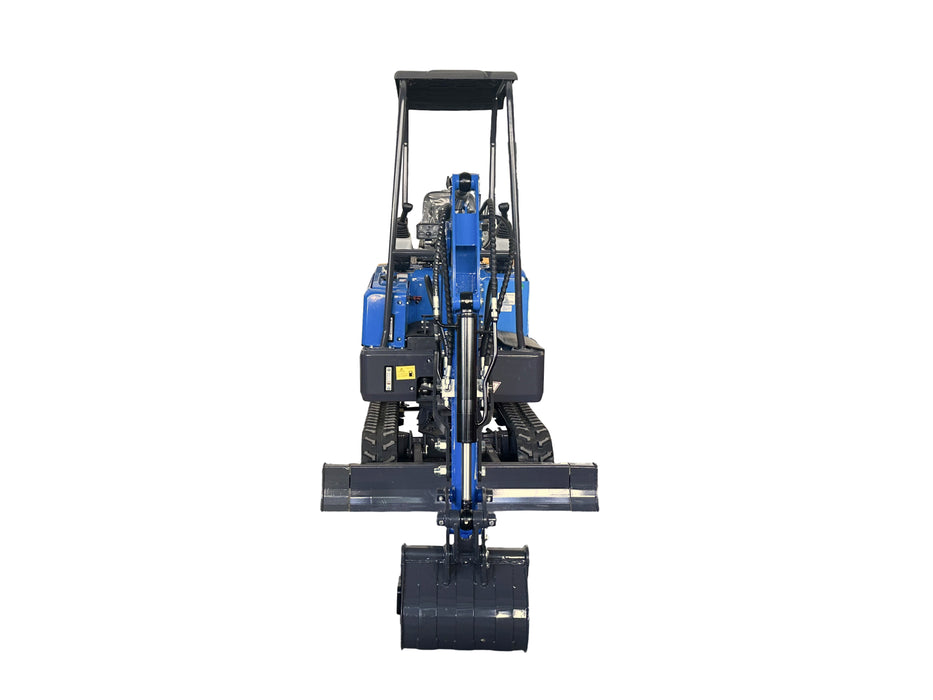

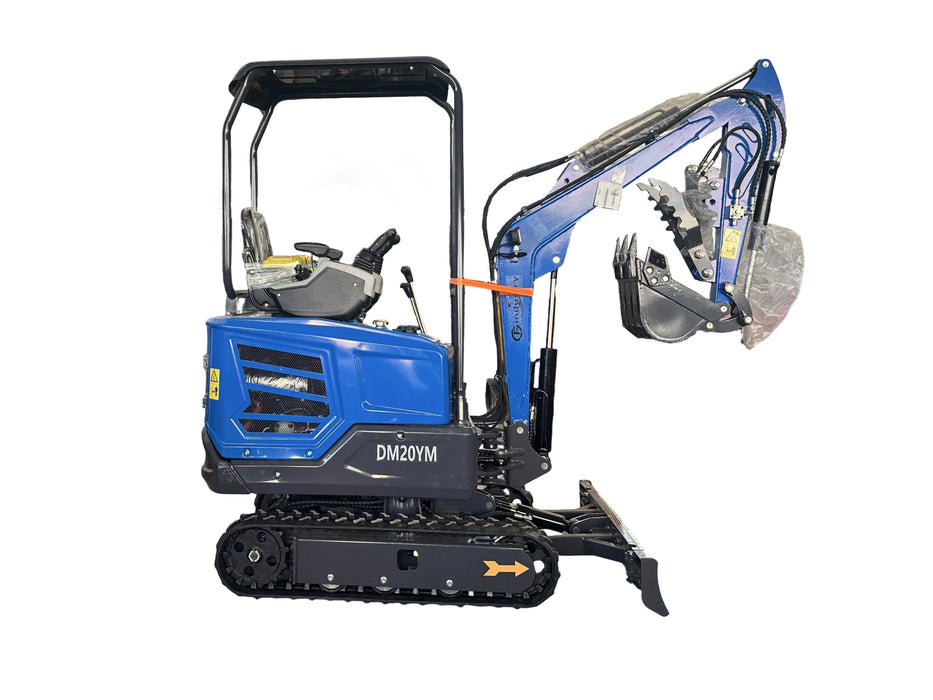

1.4 Ton Yanmar Diesel Excavator W/ Hydraulic Thumb and Side Swing | DM20YM
SKU DM20YM

1.4 Ton Yanmar Diesel Excavator W/ Hydraulic Thumb and Side Swing | DM20YM

$11,129.00 - $11,129.00
$11,129.00
$11,129.00 - $11,129.00
$11,129.00

The DM20YM is a compact 1.3-ton class mini excavator powered by a Yanmar diesel engine, built with pilot joystick controls, retractable tracks, side-swing boom, hydraulic thumb clip, and a reinforced lower frame for improved control, access, and jobsite versatility.

Dimension

  • Operating Weight: 1.3 Ton (2,866 lbs)
  • Overall Length: 3,200 mm (126 in)
  • Overall Width: 936 mm (36.9 in)
  • Overall Height: 2,210 mm (87 in)
  • Track Size: 230*72*43 (Width*Pitch Length*Links) (mm*mm*# of links)

Working Range

  • Max Digging Depth: 2,257 mm (89 in)
  • Max Digging Height: 2,890 mm (113.8 in)
  • Max Dumping Height: 1,958 mm (77 in)
  • Max Reach at Ground: 3,305 mm (130 in)
  • Blade Width: 1,260 mm (49.6 in)
  • Blade Height: 210 mm (8.3 in)
  • Blade Max Lifting Height: 288 mm (11.3 in)
  • Blade Max Drop Depth: 146 mm (5.7 in)

Engine

  • Engine Brand: Yanmar
  • Fuel Type: Diesel
  • Model: 3TNV74F-SPTY1C
  • Rated Power: 13.7 kW (18.4 HP)
  • Displacement: 999 cc
  • Fuel Capacity: 8.7 L (2.3 gal)
  • Hydraulic Flow Rate: 28.8 L/min (7.6 GPM)
  • Hydraulic Pressure: 18 MPa (2,611 PSI)
  • Hydraulic Tank Capacity: 14.2 L (3.8 gal)

Features

  • Hydraulic Thumb
  • Side Swing Boom
  • Pilot Control
  • LED Work Light
  • Expandable Tracks and Dozer Blade
  • Yanmar Diesel Engine

FEATURES

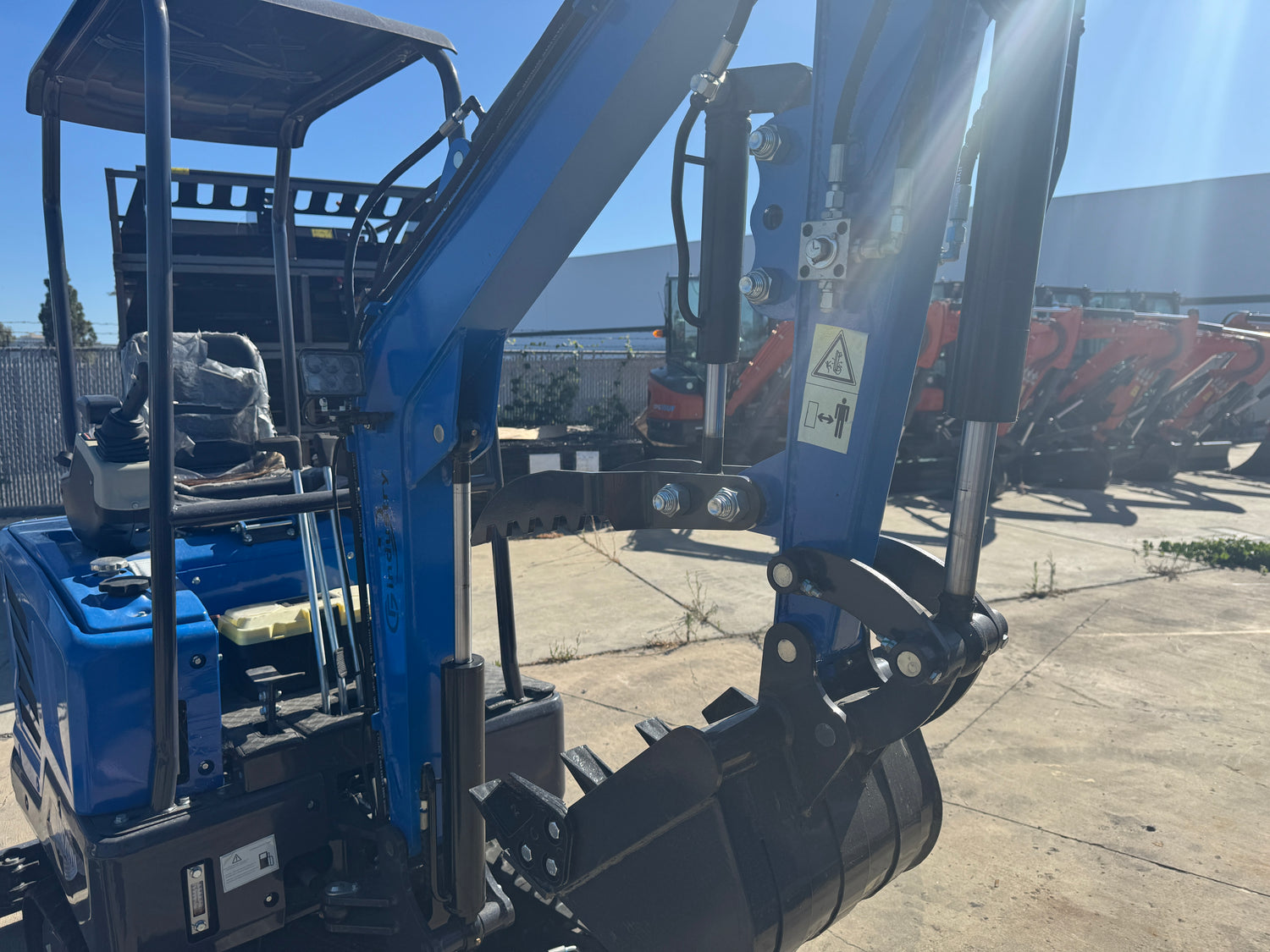

Hydraulic Thumb

Hydraulic Thumb

For esier handling of materials with firm grip

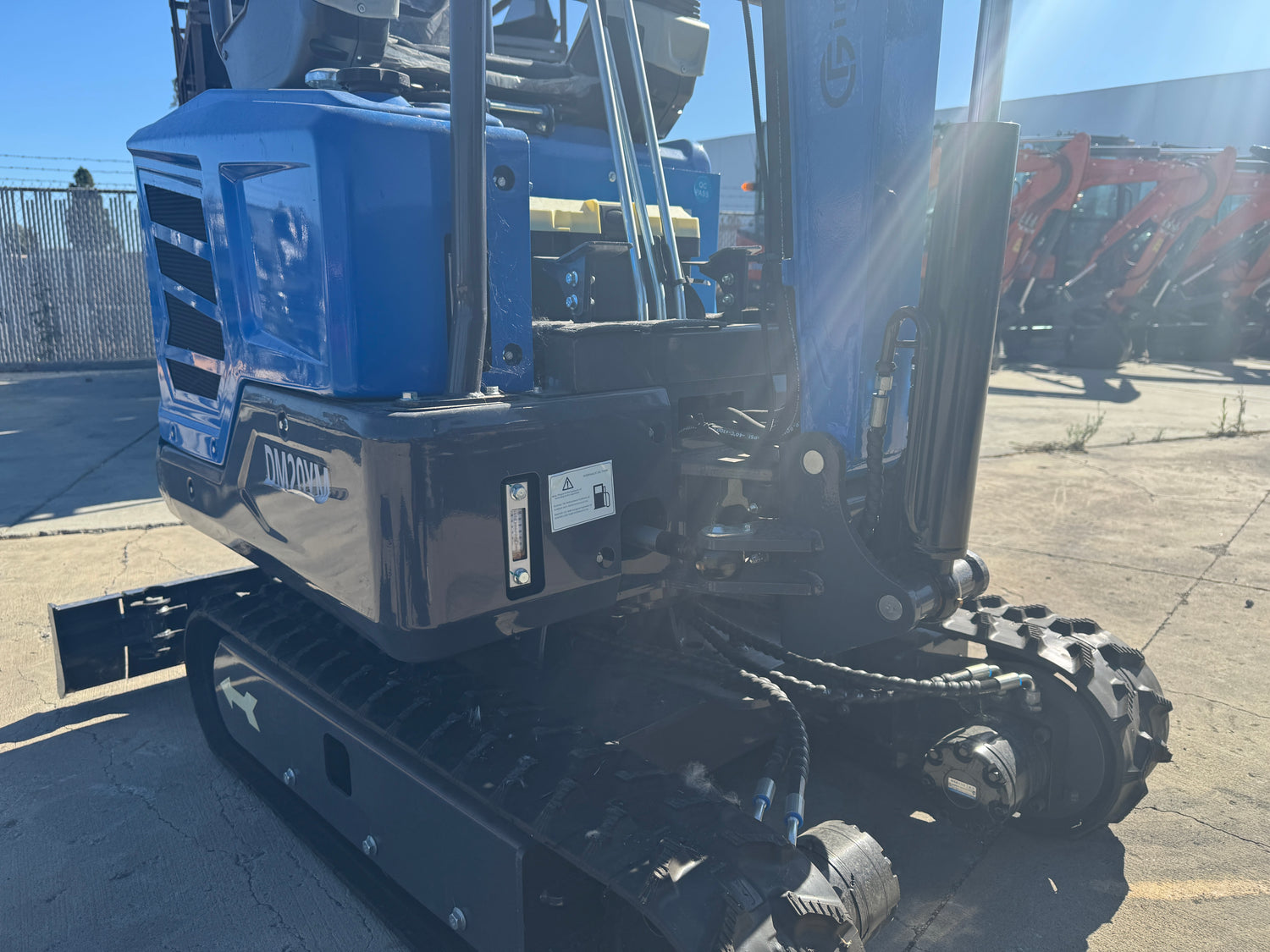

Side Swing Boom

Side Swing Boom

Works great in tight spaces and against the wall

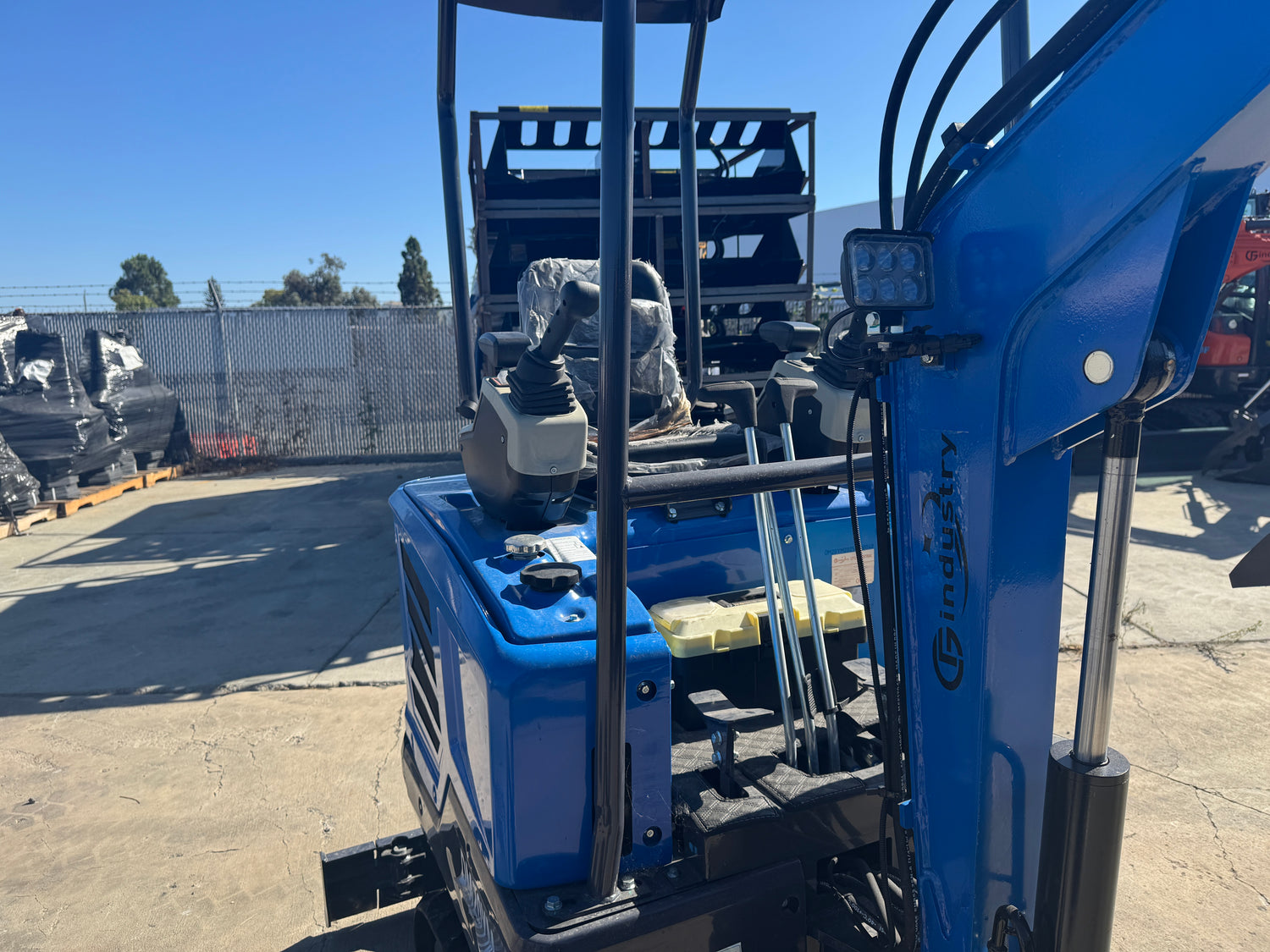

Pilot Control & LED Work Light

Pilot Control & LED Work Light

Offers more comfortable work experience

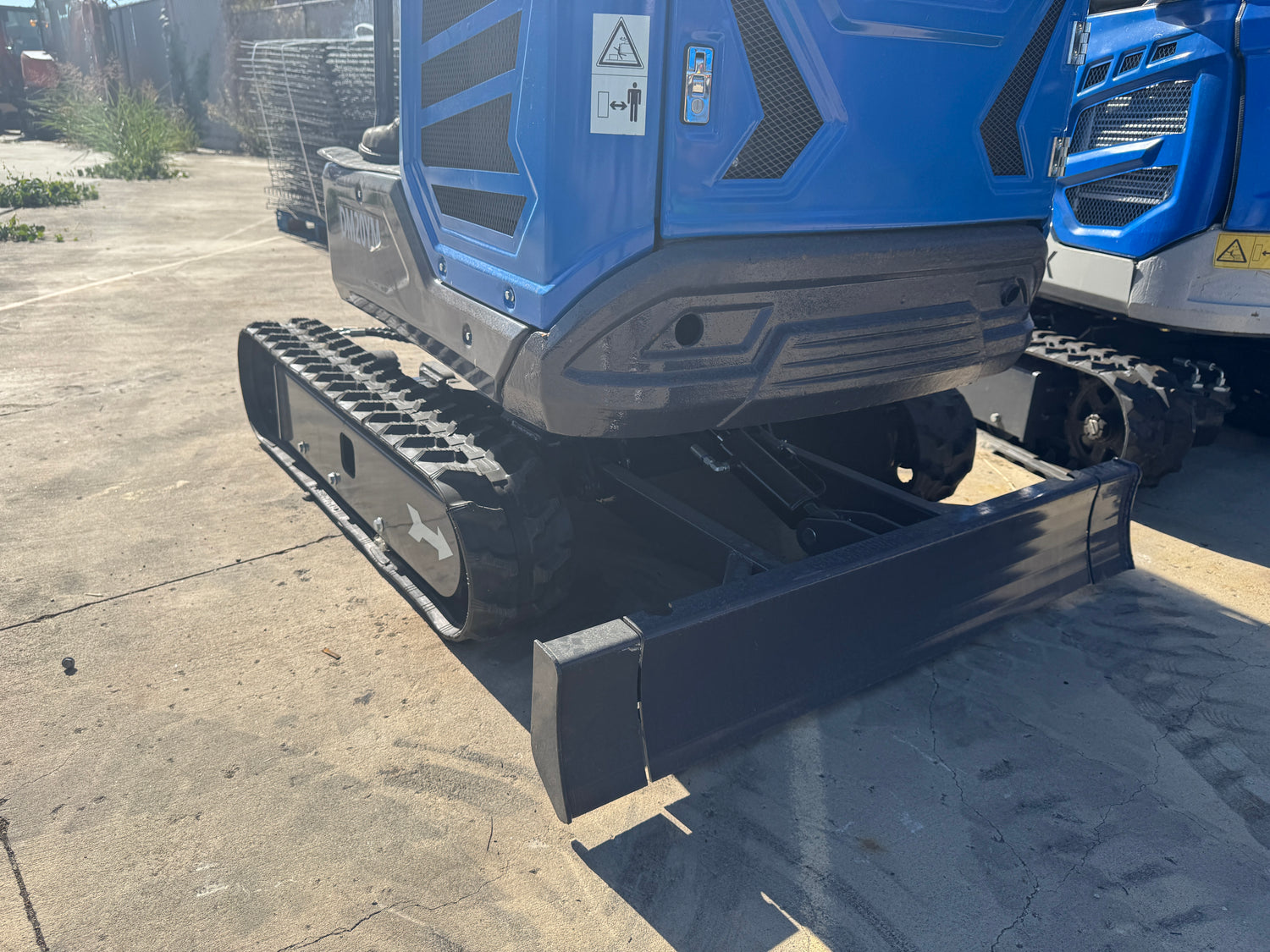

Expandable Tracks

Expandable Tracks

Adds stability when it's needed
